Dwyer Pressure Switch with 15 Amps Current Load Visible Set-Point Indicator and Large Diaphragm Design for HVAC Control

  • 1
  • 2

Brand Name : Dwyer

Model Number : 1638-0,1638-1,1638-10,1638-2,1638-5

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Certification : ce

Pressure Limits : 10 Psig (68.95 KPa) Continuous, 25 Psig (172.4 KPa) Surge

Repeatability : ±1%

Service : Air And Non-combustible, Compatible Gases

Temperature Limits : -30 To 110°F

Process Connections : 1/8" Female NPT

Mounting Orientation : Diaphragm In Vertical Position

Contact Now

Dwyer Pressure Switches
Models: 1638-0, 1638-1, 1638-2, 1638-5, 1638-10
Product Overview
The Dwyer Pressure Switches (Series 1638) are reliable, precision instruments designed for pressure-based control in HVAC and industrial processes. These switches feature visible set-point indicators and large diaphragm designs for accurate operation in low-pressure ranges, enabling precise control of pumps, fans, and valves.
Capable of handling current loads up to 15 amps, they directly support small electrical loads without additional relays, simplifying system design and reducing installation costs.

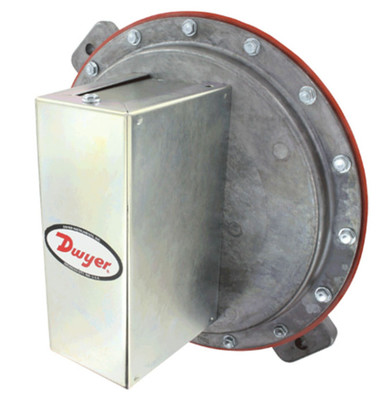

Dwyer Pressure Switch with 15 Amps Current Load Visible Set-Point Indicator and Large Diaphragm Design for HVAC Control
Key Features
  • Visible Set-Point Indicator
    Front-facing indicator allows quick visual confirmation of pressure set points, simplifying on-site adjustments and troubleshooting without specialized tools.
  • Large Diaphragm Design
    Enhances sensitivity and accuracy in low-pressure applications, enabling precise pressure threshold detection for reliable system control.
  • High Current Load Capacity
    Supports up to 15 amps, suitable for direct connection to small motors, solenoids, and alarms, eliminating the need for intermediate relays.
  • Versatile Pressure Ranges
    Multiple models cover different pressure spans from 0-1 psi to 0-10 psi to suit various application requirements.
  • Rugged Construction
    Durable housing suitable for indoor HVAC and general industrial environments with reliable performance in typical operating conditions.
Technical Specifications
Parameter Value
Model Range 1638-0, 1638-1, 1638-2, 1638-5, 1638-10
Pressure Range 1638-0: 0-1 psi; 1638-1: 0-2 psi; 1638-2: 0-5 psi; 1638-5: 0-10 psi
Current Load Up to 15 amps @ 125 VAC/28 VDC
Switch Type SPDT (Single Pole, Double Throw)
Wetted Materials Corrosion-resistant components for compatibility with air and non-corrosive gases
Mounting Panel or surface mounting options
