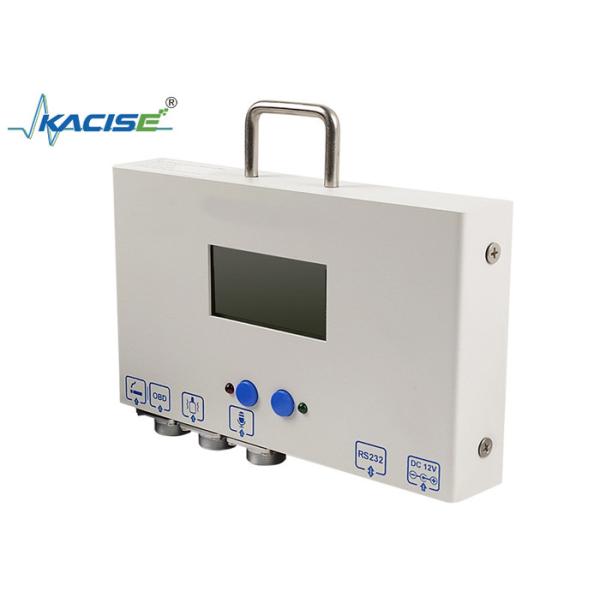

KGD WQ 522 Vibration Type Engine Tachometer Communication Inductive Pulse Electrical Parameter Simulated Ignition Signal

Brand Name : KACISE

Model Number : KGD-WQ-522

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measuring Range : Gasoline engine: 400 - 8000 rpm; Diesel engine: 400 - 6000 rpm

Operating Temperature : 5 °C - 45 °C

Humidity : 30% - 90%RH

Electrical Parameter - Communication : RS - 232, TTL signal pulse output, inductive pulse - simulated ignition signal

Electrical Parameter - Power Supply : 12VDC, 350mA

Display : LCD display

Contact Now

KGD WQ 522 Vibration Type Engine Tachometer
Communication Inductive Pulse Electrical Parameter Simulated Ignition Signal
KGD WQ 522 Vibration Type Engine Tachometer Communication Inductive Pulse Electrical Parameter Simulated Ignition Signal
Product Introduction
The KGD-WQ-522 is a portable vehicle tachometer that calculates engine speed by measuring and analyzing vibration and -lighter spectrum signals. It outputs results to instruments such as exhaust gas analyzers or smoke meters, complying with JJF 1375 "Calibration Specification for Motor Vehicle Engine Tachometers."
Key Features
  • Advanced hardware design integrated with software analysis technology
  • Capable of measuring speeds of various gasoline and diesel engines
  • Automatic calibration with high measurement accuracy and reliable performance
  • Easy to install, carry, and operate
  • Can be integrated with vehicle emission analyzers or smoke meters
Technical Specifications
Measurement Index 4-stroke gasoline and diesel engine speed
Measuring Range Gasoline engine: 400 - 8000 rpm
Diesel engine: 400 - 6000 rpm
Operating Temperature 5 °C - 45 °C
Humidity 30% - 90%RH
Electrical Parameter - Communication RS-232, TTL signal pulse output, inductive pulse - simulated ignition signal
Electrical Parameter - Power Supply 12VDC, 350mA
Display LCD display
