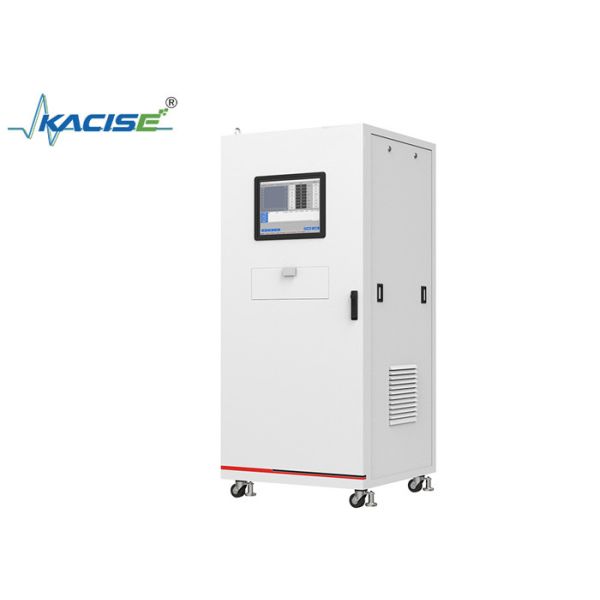

Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results

Accuracy : ≤ ±2.0%WR or ≤ ±0.3%FS

Linearity : Determination coefficient: ≥ 0.998; Standard error: ≤ 1%FS; Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5%FS

Response Time : T10 - 90 < 2.5s

Operating Environment : Ambient temperature: 5 - 40°C; Ambient humidity: ≤ 80%RH

Drift : ≤ ±1%FS/8h

Repeatability : ≤ ±0.5%FS

Brand Name : KACISE

Model Number : KGD-WQ-501

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Contact Now

Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results
Product Overview

The KGD WQ 501 Engine Emission Testing System is an integrated solution designed for precise measurement of conventional gas components (THC, CH4, NOx, CO2, CO, and O2) in full-flow dilution or raw exhaust emission tests. This comprehensive system is ideal for laboratory research, development, and certification testing of various engine types and fuels.

Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results
Key Features
  • Incorporates patented gas sensing technologies (NDIR, NDUV, CLD, HFID) with complete lifecycle support
  • Wide measurement range accommodates all laboratory emission test scenarios, including ultra-low emission levels
  • High accuracy and rapid response for precise continuous online measurement of both diluted and raw exhaust
  • Optional multi-channel sampling unit for flexible multi-point exhaust pipe sampling and EGR rate measurement
Technical Specifications
Gas Component Measurement Principle Minimum Range Maximum Range
THC HFID 0 - 10 ppmC 0 - 30000 ppmC
CH4 NMC-FID 0 - 10 ppmC 0 - 3000 ppmC
NOx NDUV/CLD 0 - 10 ppm 0 - 10000 ppm
CO NDIR 0 - 50 ppm 0 - 10%
CO2 NDIR 0 - 0.5% 0 - 20%
O2 MPD 0 - 1% 0 - 25%
Performance Characteristics
Response Time T10 - 90 < 2.5s
Accuracy ≤ ±2.0%WR or ≤ ±0.3%FS
Linearity Determination coefficient: ≥ 0.998; Standard error: ≤ 1%FS; Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5%FS
Repeatability ≤ ±0.5%FS
Drift ≤ ±1%FS/8h
Operating Environment Ambient temperature: 5 - 40°C; Ambient humidity: ≤ 80%RH
