Automotive Carbon Dioxide Sensor with Dual-light-source NDIR Technology and Expandable 40000ppm Detection Range for Vehicle CO₂ Monitoring

Brand Name : KACISE

Model Number : KGD-ACDS-306

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Detection Range : 400 - 5000ppm (expandable to 40000ppm)

Detection Accuracy : ±(50ppm + 5% of the reading)

Operating Temperature : -40°C - 85°C

Storage Temperature : -40°C - 95°C

Supply Voltage : DC 9 - 16V

Operating Current : ≤100mA

Contact Now

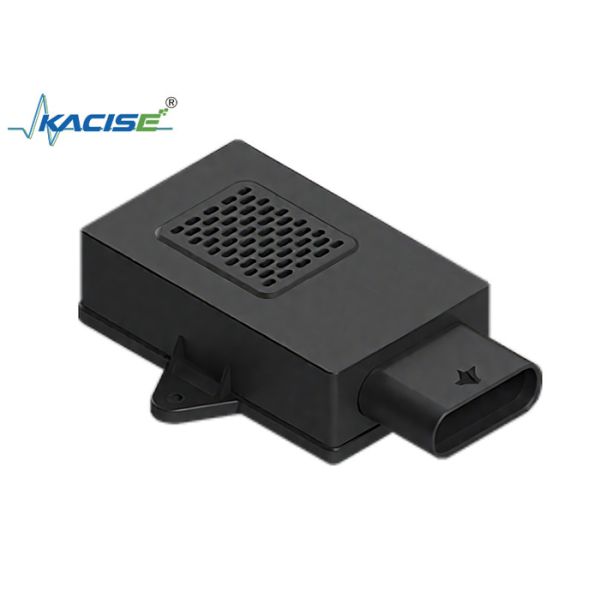

Automotive Carbon Dioxide Sensor KGD - ACDS - 306
Product Overview

The automotive carbon dioxide sensor KGD - ACDS - 306 works in intelligent coordination with automotive air-conditioners, striking a perfect balance between driving comfort and economy. This advantage is particularly important in new energy vehicles.

When applied in cars, the carbon dioxide sensor can determine whether there are any remaining occupants inside the vehicle based on changes in CO₂ concentration after locking the car, and provide timely alerts.

Automotive Carbon Dioxide Sensor with Dual-light-source NDIR Technology and Expandable 40000ppm Detection Range for Vehicle CO₂ Monitoring
Product Features
  • Dual-light-source NDIR technology
  • Ensures measurement accuracy across the full temperature and pressure range
  • Detection range up to 40,000ppm for detecting R744 refrigerant leakage with timely alerts
  • Can be deeply integrated with PM2.5 sensors
  • Small zero-point drift and excellent stability
Technical Specifications
Parameter Specification
Detection Range 400 - 5,000ppm (expandable to 40,000ppm)
Detection Accuracy ±(50ppm + 5% of reading)
Operating Temperature -40°C to 85°C
Storage Temperature -40°C to 95°C
Supply Voltage DC 9 - 16V
Operating Current ≤100mA
Communication Method LIN
Installation Location Automotive air-conditioner
