KGD-MQ-528 Integrated Biogas Analysis System with NDIR Technology for Multi-Component Measurement and Long-Life Electrochemical Sensing

Brand Name : KACISE

Model Number : KGD-MQ-528

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measured Components : CH4, CO2, H2S, O2

Measurement Principle : CH4/CO2: NDIR; H2S/O2: ECD

Measurement Range : CH4: (0 - 100)%; CO2: (0 - 50)%; H2S: (0 - 9999) ppm; O2: (0 - 25)%

Accuracy : CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.

Resolution : CH4/CO2/O2: 0.01%; H2S: 1ppm

Repeatability : CH4/CO2: 0.5%; H2S/O2: 1%

Contact Now

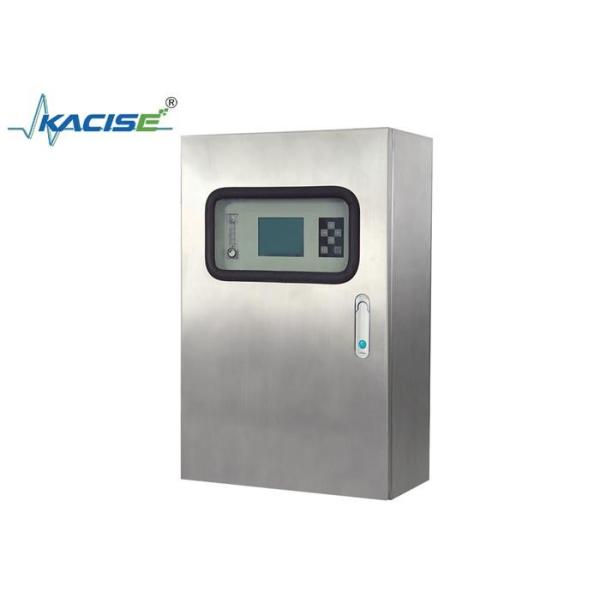

KGD-MQ-528 Integrated Biogas Analysis System
Product Overview

The KGD-MQ-528 Integrated Biogas Analysis System utilizes non-dispersive infrared gas analysis technology with independent intellectual property rights and long-life electrochemical sensing technology. It enables continuous, real-time online monitoring of volume concentrations for gases including CH4, CO2, H2S, and O2 in biogas components. The system can be optionally equipped with a pretreatment unit to achieve multi-channel sampling and water-removal functions, adapting to various on-site biogas working conditions.

KGD-MQ-528 Integrated Biogas Analysis System with NDIR Technology for Multi-Component Measurement and Long-Life Electrochemical Sensing
Key Features
  • High Measurement Accuracy and Long Service Life: Simultaneously measures volume concentrations of CH4, CO2, H2S, and O2 gases online with no cross-interference. Patented H2S sensor protection technology extends sensor lifespan.
  • Stable Working Performance: Dual-channel sensor design ensures high stability. Features self-diagnosis function for online sensor status monitoring.
  • Convenient Data Management: Data transmission to centralized control systems via multiple interfaces, providing real-time basis for remote monitoring and process adjustment.
  • High Degree of Automation: Equipped with fully automatic, maintenance-free pretreatment device for stable, accurate, continuous online operation without manual attendance, reducing labor costs.
  • Simple Operation and No Consumables: Unlike Orsat and chromatography technologies, requires no disassembly, installation, or chemical reagents. Simple operation with no consumables.
Technical Specifications
Measured Components CH4, CO2, H2S, O2
Measurement Principle CH4/CO2: NDIR; H2S/O2: ECD
Measurement Range CH4: (0-100)%; CO2: (0-50)%; H2S: (0-9999) ppm; O2: (0-25)%
Accuracy CH4/CO2: ±1%F.S.; H2S/O2: ±2%F.S.
Resolution CH4/CO2/O2: 0.01%; H2S: 1ppm
Repeatability CH4/CO2: 0.5%; H2S/O2: 1%
Response Time T90≤60S (NDIR)
Optimal Flow Rate (0.7-1.2) L/min
Inlet Gas Pressure (2-50) kPa
Gas Requirements Dust-free, water-free, oil-free
Communication RS-485/RS-232, (4-20) mA
Power Supply AC220V, 50Hz
Functional Configuration Built-in zero-adjustment air pump for automatic air zero-adjustment; Automatic drainage and sampling time setting; Stainless-steel protective cabinet with anti-corrosion treatment; System overall temperature control, suitable for low-temperature regions; Self-diagnosis function for online sensor status checking
