GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial

Product Categories
Xi'an Kacise Optronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial

Bias repeatability : ≤40ug

Brand Name : Gyrosens

Model Number : GSACC116Q

Certification : CE

Place of Origin : china

MOQ : 1pcs

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Size : Ø18.2×23.6

Bias temperature sensitivity : 40ug/°C

range : ±80g

Bias : <5mg

Bias stability : ≤40ug

Contact Now

GSACC116Q Quartz Flexible Accelerometer
Product Introduction
The quartz flexible accelerometer is a precision instrument featuring quartz glass flexible support and advanced servo circuitry based on inertia principles. When subjected to acceleration, it produces an output precisely proportional to the input acceleration. With high output impedance current output, users can select sampling resistance according to requirements without affecting system stability.
Our product line ranges from high-precision μg GSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged GSACC117Q models. These accelerometers serve aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.
Key Features
  • Excellent index repeatability
  • Analog output
  • Compact and lightweight design
  • Wide load resistance range
  • Precision triangle mounting flanges
  • Ideal for UAVs and petroleum pipelines
  • Two available models
Applications
  • Inertial monitoring systems
  • Inertial navigation systems
  • Flight control systems
  • Vibration monitoring
  • Oil drilling platforms and geological exploration
  • Inertial measurement units
  • Motion monitoring equipment
GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial
Technical Specifications
GSACC116Q Specifications
Power Supply Parameters
Power Voltage 12~18VDC
Power @25°C 90mW
Supply current 6mA
Product Performance
Range ±80g
Size Ø18.2*23.6
Bias <5mg
Bias stability ≤40ug
Bias temperature sensitivity 40ug/°C
Bias repeatability ≤40ug
Scale factor 0.6～1.3mA/g
Scale factor temperature sensitivity 60ppm/°C
Second order nonlinear coefficient ≤50μg/g²
Second order nonlinearity coefficient repeatability ≤20μg/g²
Scale factor repeatability 40ppm
Noise <5μg
Threshold <5 μg
Bandwidth <200 Hz
Weight ≤35g
Environmental Specifications
Operating temperature -45°C～80°C
Storage temperature -55°C～80°C
Random vibration 15g(20~2000Hz)
Shock 100g

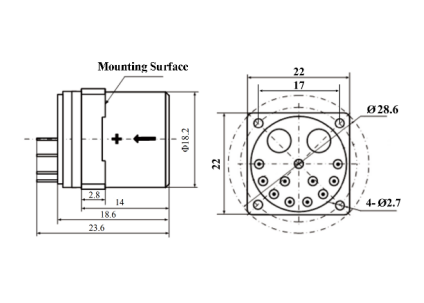

Dimensions
Unit: mm
GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial
