Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation

Product Categories
Xi'an Kacise Optronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation

Brand Name : Gyrosens

Model Number : GSACC114Q

Certification : CE

Place of Origin : china

MOQ : 1pcs

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

range : ±20g

Scale factor : 1.2～1.6mA/g

Bias repeatability : ≤30ug

Bias temperature sensitivity : 30ug/°C

Bias stability : ≤30ug

Bias : <5mg

Size : Ø25.4×32

Contact Now

GSACC114Q Quartz Flexible Accelerometer
The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the accelerometer output is precisely proportional to the input acceleration. Our accelerometer features a current output form with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.
Our quartz flexible accelerometer product line includes numerous models, ranging from the high-precision GSACC111Q accelerometer for satellite microgravity measurement to the cost-effective, harsh-environment-resistant GSACC117Q accelerometer. These instruments are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.
Key Features
  • Excellent index repeatability
  • Analog output
  • Built-in digital temperature sensor
  • Wide load resistance range
  • Application in the inertial navigation system of the new generation weapon
  • Two models available
Applications
  • Inertial monitoring system
  • Inertial navigation system
  • Flight control system
  • Vibration monitoring
  • Oil drilling platforms and geological exploration
  • Inertial measurement unit
  • Motion monitoring equipment
Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation
Technical Specifications
Parameter GSACC114Q
Power Supply Parameters
Power Voltage 12~18VDC
Power 25°C 90mW
Supply Current 6mA
Product Performance
Range ±20g
Size Ø25.4×32
Bias <5mg
Bias Stability ≤30μg
Bias Temperature Sensitivity 30μg/°C
Bias Repeatability ≤30μg
Scale Factor 1.2～1.6mA/g
Scale Factor Temperature Sensitivity 30ppm/°C
Second Order Nonlinear Coefficient ≤15μg/g²
Second Order Nonlinearity Coefficient Repeatability ≤15μg/g²
Scale Factor Repeatability 30ppm
Noise <5μg
Threshold <5μg
Bandwidth <200 Hz
Weight ≤70g
Environmental Specifications
Operating Temperature -45°C～80°C
Storage Temperature -55°C～80°C
Random Vibration 15g(20~2000Hz)
Shock 100g

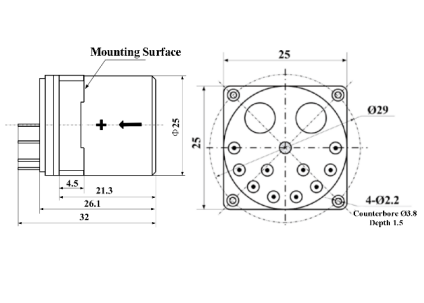

Dimensions
Unit: mm
Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation
