Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and

Name: FiveBeam Underwater Obstacle Avoidance Sensor with 108VDC to 26VDC Power Supply 05 Measurement Accuracy and
Brand: kacise
Price: 1 USD

Brand Name : kacise

Model Number : Five-Beam

Certification : ce

Place of Origin : china

MOQ : 1pcs

Payment Terms : MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Communications : TTL communication, ModBus-RS485 protocol

Power supply : 10.8VDC to 26VDC

Transmission direction : Orientation as per drawing

Blind zone : <20cm

Measurement accuracy : ±0.5% (maximum range)

Contact Now

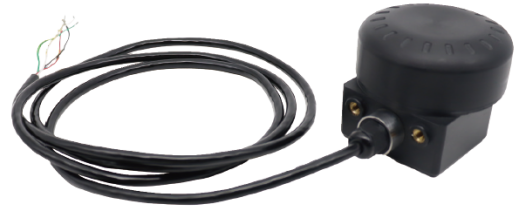

Five-Beam Underwater Obstacle Avoidance Sensor

Introduction

This advanced sensor features integrated transducers in five directions that emit ultrasonic waves for precise distance measurement. Ideal for underwater robots, obstacle avoidance systems, and submersible vehicles.

Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and

Technical Specifications

Specification	Detail
Product name	KUS-W80 Underwater Ultrasonic Spectrum Analyzer
Power supply	10.8VDC to 26VDC
Blind zone	<20cm
Measurement accuracy	±0.5% (maximum range)
Transmission direction	Orientation as per drawing
Communications	TTL communication, ModBus-RS485 protocol
Measurement range	>5m
Ambient temperature	-20°C to 60°C
Protection level	IP68, water pressure resistant up to 150m
Interface type	Aviation plug connector or direct cable outlet
Probe cable	4-core shielded cable

Application Fields

Underwater robotics and autonomous vehicles
Submersible obstacle avoidance systems
Marine research and exploration equipment
Underwater infrastructure inspection
Aquaculture monitoring systems
