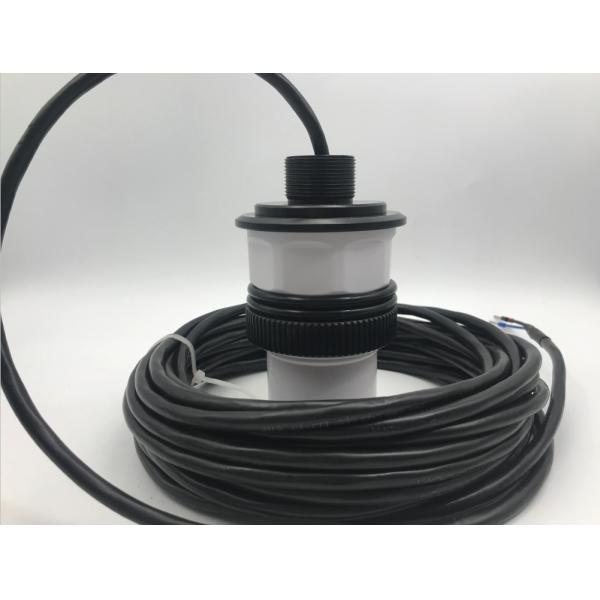

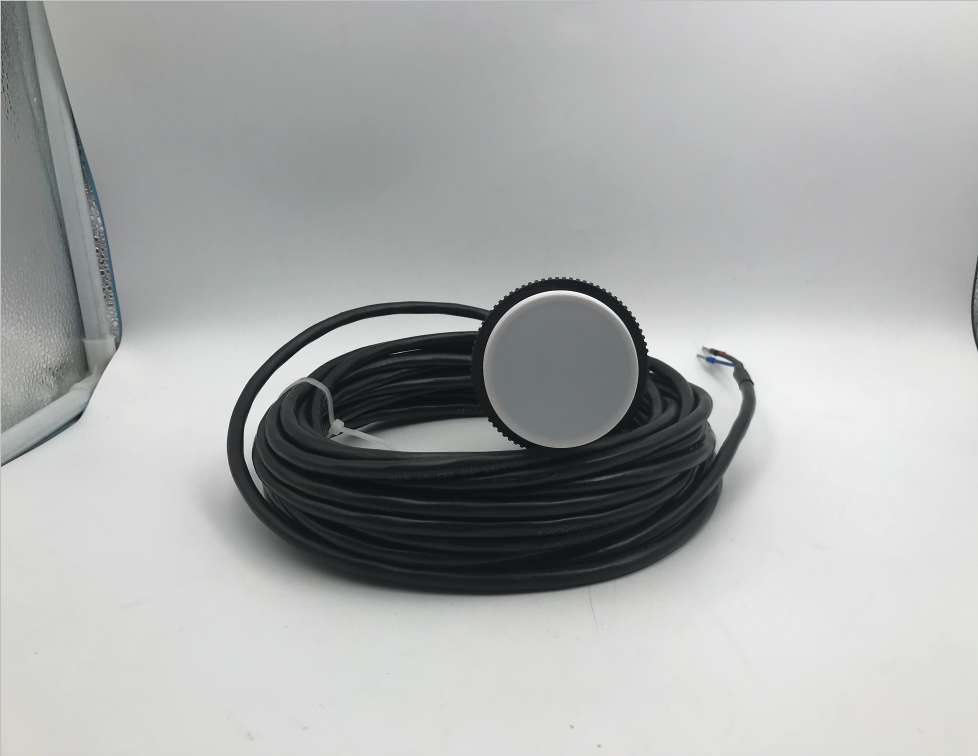

12m Range Anti-Corrosion Explosion Proof Ultrasonic Sensor with CE Certificate

Product Categories

Xi'an Kacise Optronics Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 12m Range AntiCorrosion Explosion Proof Ultrasonic Sensor with CE Certificate
Brand: Kacise
Price: 1 USD

Brand Name : Kacise

Model Number : KUA-40-12PB-F

Certification : certificate of explosion-proof, CE

Place of Origin : China (Mainland)

MOQ : 1 Piece/Pieces

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 3000 Piece/Pieces per Month

Delivery Time : 9 working days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Model : KUA-40-12PB-F

Frequency : 40KHz±5%

Range : 0.5～12m

Minimum impedance : 390Ω±20％

Capacitance : 5200pF±20％ @1KHz

Sensitivity : emits voltage:700Vpp,distance 0.6m, echo amplitude 450mV

Working voltage : Peak point voltage＜1500VPP

Working temperature : -40～+80℃

Pressure : ≤3kg or 0.3MPa

Contact Now

12m Anti-corrosion Transducer Model PB(remote: KUA-40-12PB-F)

Item	Parameters
Name	12m Anti-corrosion Transducer Model PB
Model	KUA-40-12PB-F
Frequency	40KHz±5%
Range	0.5～12m
Minimum impedance	390Ω±20％
Capacitance	5200pF±20％ @1KHz
Sensitivity	emits voltage:700Vpp,distance 0.6m, echo amplitude 450mV
Working voltage	Peak point voltage＜1500VPP
Working temperature	-40～+80℃
Pressure	≤3kg or 0.3MPa
Angle	(Beam width) half-power angle@-3dB:10°±2, Sharpness angle: 23°±4
Housing material	POM, PVDF
Usage	ultrasonic level sensor, monitor, anti-collision, security
IP grade	IP68
Weight	950g±5％(cable length: 10m)

waterproof ultrasonic sensor
