KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement

Brand Name : Kacise

Model Number : KUFF2000

Place of Origin : China

MOQ : 1

Price : 280~322USD/pc

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100+

Delivery Time : 5-8 work days

Packaging Details : carton

Accuracy : ±1%

Velocity Range : 0~±10m/s, Bi-directional measurement

Pipe Size : DN50~DN6000

Temperature : - 30~160℃

Power Supply : DC8~36V or AC85~264V. AC85~264V.( optional, with water proof power adapter)

Interface : RS485, support MODBUS

Data Storage : SD card regularly store the pre-set results (optional)

Contact Now

KUF2000 Series Insertion Ultrasonic Flow Meter
Introduction

KUF2000 series insertion type ultrasonic flow meter consists of the meter and insertion transducer.

Install the transducer by opening two holes on the pipeline. No need to cutoff water by using the specialized tool. Transducers are in direct contact with fluid, which make the measurement more steady and reliable. If connecting Pt100 temperature transducer, it can realize the heat/energy measurement.

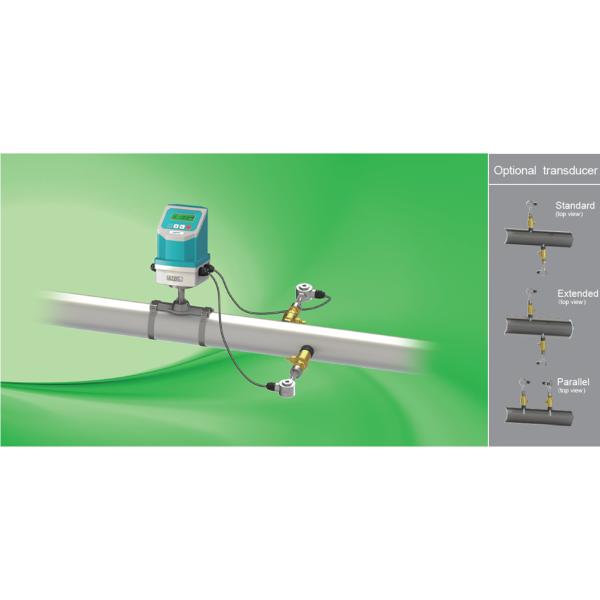

Both the main unit and sensor of the KUFF2000 flow meter are fixed on the pipe. Suitable for pipe sizes from DN50mm to DN6000mm.

KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement
Working Condition
Main Unit Sensor
Protection IP68 IP68
Temperature -20~60℃ -30~160℃
Basic Parameters
Accuracy ±1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN50~DN6000
Temperature - 30~160℃
Type of Liquid Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material

Carbon steel, stainless steel 304, stainless steel 316.

Flange standard GB/T9119-2000, GB/T81-94
Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output
Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply

DC8~36V or AC85~264V.

AC85~264V.( optional, with water proof power adapter)
Optional Insertion Sensors
Standard Insertion Sensor
KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement
  • Suitable for the pipeline can be directly welded, like carbon steel and stainless.
  • Pipeline thickness ≤ 2 0
  • Measuring range: DN50~DN6000
  • Temperature range:-30~+160℃
Extended Insertion Sensor
KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement
  • Suitable for the pipeline cannot be directly welded, like cement pipe, cast iron, PVC, steel or composite material.
  • Pipeline thickness ≤ 7 0
  • Measuring range: DN50~DN6000
  • Temperature range:-30~+160℃
Parallel Insertion Sensor
KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement
  • Suitable for installation of insufficient space.
  • Suitable for either weldable or non-weldable pipeline.
  • Unlimited pipeline thickness, insertion depth=1/3 inner diameter.
  • Measuring range: DN80~DN6000
  • Temperature range: -30~+160℃
Pipe Clamp

By using pipe clamp, the insertion sensor can be installed without welding. There is no need to cut off water during installation. Especially suitable for cement pipe, cast iron pipe, PVC, copper pipe or composite material.

KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement
Ordering information
KUFF2000 Fixed Insertion Ultrasonic Flow Meter with ±1% Accuracy for DN50-DN6000 Pipe Sizes and Bi-directional Measurement
