4-20mA output 0.5 accuracy Separate Submersible Water Level Sensor

Brand Name : kacise

Model Number : GXPS400M

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Pressure range : 0~1...200mH2O

Overload pressure : 1.5times Rated pressure

Secondary containment : 3 times rated pressure

Accuracy : ±0.1%F.S, ±0.25%F.S, ±0.5%F.S

Operating Temperature : -40°C~85°C

Compensation temperature : -10°C~70°C

Output signal : 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc

Power supply : 0~30VDC, 6~24Vdc, 11~30Vdc,

Contact Now

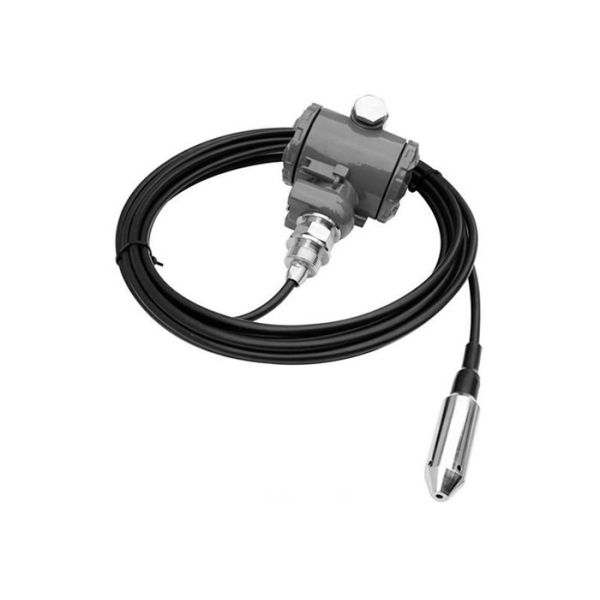

4-20mA Output 0.5 Accuracy Separate Submersible Water Level Sensor
Submersible Water Level Sensor 4-20mA Separate Submersible Level Pressure Transmitter / Sensor
Product Description
GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of small diameter pipes and liquid level in reservoirs. Suitable for water, oil, and mildly corrosive liquids.
The product uses 1Cr18Ni9Ti stainless steel structure with imported oil-filled pressure core, dedicated zoom and V/I transmitter conversion circuit, which facilitates zero and full scale calibration and external zero and span programmable regulation.
Features abrasion, oil, acid and alkali resistant properties. High-strength special breathable cable can be configured depending on site requirements. Certified intrinsically safe, explosion proof, and CE certified. Non-polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.
Technical Parameters
Specification Value
Pressure range 0~1...200mH₂O
9.8KPa…1900KPa
0.09bar…19.6bar
0.09atm…19.3atm
1.4psi…284psi
2.8inchHg…579inchHg
Load pressure 1.5 times nominal value pressure
Rupture pressure 3 times nominal value pressure
Accuracy 0.1%F.S, 0.25%F.S, 0.5%F.S
Stability Typical value 0.1%F.S/year, Max. 0.2% F.S
Operating temperature -40°C~85°C
Compensation temperature -10°C~70°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti

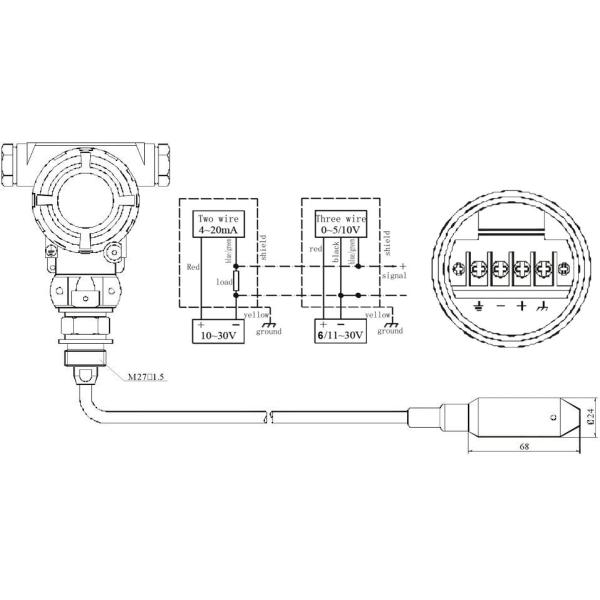

Electrical performance 2 wire system | 3 wire system
Output signal 4~20mA | 0/1~5Vdc | 0~10V
Power supply 10~30Vdc | 6~24Vdc/ac | 11~30Vdc/ac
Load pressure (U-10)/0.02(Ω) | >100kΩ
Insulation >100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Electrical connection Waterproof cable outlet+ two rectangular ring+ sealing ring+ seal gum+ glue; IP68
Pressure port Submersible type, transmitting box wellhead connection dimension M27*1.5
Pressure type G | Response time: 10ms
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
Key Features
  • 0.1%, 0.25%, 0.5% F.S accuracy
  • Split structure design
  • Ø24 diameter
  • Diffused silicon oil-filled core
  • Multiple pressure range and signal output options
  • Non-polarity two wire current output
  • Intrinsically safe, explosion proof, CE certified
4-20mA output 0.5 accuracy Separate Submersible Water Level Sensor
Application Fields
  • Hydrologic monitoring
  • Constant pressure water supply
  • Frequency conversion water supply
  • Tail dam water level monitoring
  • Liquid storage tank level height measurement
  • Water saving irrigation systems
  • Circulation fluid consumption monitoring
  • Small caliber tube level detection
4-20mA output 0.5 accuracy Separate Submersible Water Level Sensor
